SK Static mixer

Product details

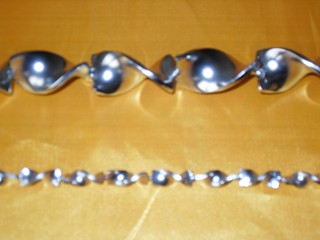

SK Static mixer
This unit is welded by asingle hole spiral pieces group
Technical performance: the highest degree of dispersion ≤ 10um, uniformity coefficient of liquid - liquid, liquid - solid phase s X ≤ 5%.

This machine is suitable for chemical, petroleum, pharmaceutical, food, fine processing, plastics, environmental protection, synthetic fiber, metallurgy industries. It is used in mixing, extraction, absorption, injection molding, color matching, and heat transfer processes. It is applied to Small flow high viscous media (viscosity ≤ 106 cps)which is mixed with impurities .

Product model

Specification	Dg	dh	L	Q
SK-5/10	10	5	150	0.15-0.30
SK-7.5/15	15	7.5	300	0.3-0.6
SK-10/20	20	10	500	0.6-1.2
SK-12.5/25	25	12.5	500	0.9-1.8
SK-20/40	40	20	500	2.2-4.5
SK-25/50	50	25	500	3.5-7.0
SK-40/80	80	40	1000	9-18
SK-50/100	100	50	1000	14-28
SK-75/150	150	75	1000	31-64
SK-100/200	200	100	1000	56-110
SK-125/250	250	125	1000	88-177
SK-150/300	300	150	1000	127-255
SK-175/350	350	175	1000	173-346
SK-200/400	400	200	1000	226-452
SK-250/500	500	250	1000	353-706
